Hitch Components
How Does A Trailer Hitch Work?
Trailer hitches are the primary connector between a trailer and the tow vehicle. In other words, it's a component that bolts to the vehicle and provides a place to connect a trailer to the vehicle. You might imagine what is actually called a ball mount when you think trailer hitch. Ball mounts, however, are simply accessories for trailer hitches. The trailer hitch, along with other components, is what connects your trailer to your tow vehicle. Hitch connections are bolted or welded on your tow vehicle.
How Does A Receiver Hitch Work?
There are different types of trailer hitches, but most of them attach to the underside of a vehicle, at the rear, and provide a tube for attaching accessories. Most receiver hitches are vehicle-specific, have a standard receiver tube size, and belong to one of five hitch classes. Receiver hitches are perhaps the most popular types of trailer hitches. In fact, the two terms are interchangeable.
Different Types Of Trailer Hitches
Bumper Mounted Trailer Hitches
Bumper hitches allow for adjustment and flexibility in towing, mount to the bumper, and provide a receiver tube for a ball mount, cargo carrier, bike rack, or other hitch-mounted accessories.
Front Mounted Trailer Hitches
Front mount trailer hitches allow you to use the front end of your vehicle for various towing purposes. They can be used for mounting a winch, snow plow, or other accessories
Gooseneck Trailer Hitches
Gooseneck hitches are designed to tow heavy loads that come with gooseneck trailers. RVs and livestock trailers are typically the types of trailers of this type, but they can also be flatbeds or other large trailers.
5th Wheel Trailer Hitches
A fifth wheel hitch is installed in the bed of a pickup. The weight distribution of the trailer will press down between the cab of the truck and the rear axle.
Receiver Trailer Hitches
Receiver hitches are categorized in classes 1 through 5, according to the maximum amount of gross trailer weight they can tow.
List Of Hitch Components For Online Sale Canada
Hitch Balls
Hitch Pins
Hitch Ball Mounts
Hitch Extensions
Hitch Locks
Hitch Receiver Covers
RV Trailer Hitch
Trailer Hitch Parts
Ball Hitch For Camper
Ball Hitch Replacement Parts
Hitch Cables
Hitch Chains
Hitch Couplers
Hitch Parts
Hydro Trailer Hitch
Parts Of A Ball Hitch
Parts Of A Hitch
Parts Of A Trailer Hitch
Parts Of Tow Hitch
Receiver Hitch Components
Hitch Components β The Business of Connection
The hitch components in your towing car and in the towed vehicle or trailer form the essential connection between your towing vehicle and that which is being towed. Towing a trailer with your car would need five parts to execute.
Trailer Hitch Components
The trailer hitch receiver is similar to a typical hitch. The receiver is the device that connects and attaches beneath your vehicle to connect the tow vehicle to the trailer hitch. This has an opening to receive the ball mount.
Fixed Drawbar Hitches
Fixed drawbar hitches fixed tongue hitches consist of the hitch and the ball mount and are considered as a single unit not generally compatible with aftermarket accessories. The receiver type hitches accept a removable ball mount which is separate from the receiver. This allows flexibility compared to fixed drawbar hitches.
Drawbar Ball mount
This is the component that slides into your receiverβs opening to provide the platform for the ball that attaches your hitch to your trailer. In fixed-drawbar hitches, this is the part that forms a single unit with your receiver. In receiver-type hitches, theΒ ball mount is separate.
Trailer Hitch Ball
This is the connecting metal ball that hitches your trailer when you lower the trailer tongue couplerβs round opening onto it. The coupler sits over the hitch ball and pivots on it when you turn your vehicle. These balls come in three sizes: 1-7/8 inches, 2 inches, and 2-5/16 inches.
Wiring Harness
The pin and clip is the bolting mechanism that holds the ball mount secure to the receiver opening. The pin fastens the pin into place. The wiring harness is the wiring connection that supplies power to your trailerβs lights and signals.
Hitching Terminology
There are certain abbreviations that are related to the hitch class ratings and towing capacity. GTW refers to the gross trailer weight. This is the combined weight of your trailer and its contents.Β TW is tongue weight which means the amount of weight placed on your hitch by your trailerβs attachment.
GVWR is the gross vehicle weight rating and the GVM means the gross vehicle mass rating. This is the actual amount of the weight or mass your vehicle can carry (including the parts, passengers, and cargo, and tongue weight) but does not include the trailer. The GCWR is the combined weight rating. In effect, this is the maximum weight for both the vehicle and the trailer altogether.Β Β
Tow Hitch Installation
The maneuver for installing the tow hitch is done step by step. The first action is to maneuver into a position where the hitch ball lines up with the trailer tongueβs coupler. This closes the latch over the ball and secures it with the pin. In turn, this secures the connection of the safety chains and attaches your wiring harness. To choose the right hitches, you need to take into account not only the type of vehicle you have but also how much you need to tow including the trailer and contents.
Selecting The Best Trailer Hitch For Your Vehicle
Look Up Your Vehicle- Begin by looking up your vehicle in our Select Your Vehicle tool near the top of the page. Enter the year, make, model and submodel, if needed. A custom-fit ensures an easier installation, maximum towing capacity, and optimal look and integration with the spare tire and other vehicle design features.
Select A Hitch Class
After entering the year, make and model, you will be able to view the trailer hitch or trailer hitches that are specifically tailored for your vehicle. Some vehicles may have more than one option to choose from. In this case, it is helpful to understand that trailer hitch receivers are divided into five different classes. What class of trailer hitch is best suited?
Maximize Your Trailer Hitch Potential
What size hitch do I need? If multiple trailer hitches are compatible with your vehicle, it can be helpful to consider what and how often you'll be towing. If you're planning to frequently tow heavier trailers, you should maximize your towing potential with a higher-rated hitch and larger hitch receiver. If you'll only be towing light-duty trailers or using the hitch receiver for cargo management with a bike rack or cargo carrier, a smaller trailer hitch may be sufficient.
Add Accessories To Your Trailer Hitch
A hitch receiver is just a receiver. It doesn't provide a direct connection to a trailer. As such, after you've selected a hitch for your vehicle, you will need to purchase some hitch accessories, such as a ball mount, trailer ball, hitch lock, and wiring harness.
Key Hitch Component Parts For Trailer Hitching
If youβre considering the purchase of a new trailer and youβve never towed before it can seem like a daunting task. Thereβs a lot to learn, but once you have the tools and knowledge necessary it provides the foundation for a lot of great recreation! In this guide, we discuss the various parts that go into hitching up a trailer.
Hitch Receiver
The foundation of the hitch! The Hitch receiver bolts or is welded onto the frame of your tow vehicle, allowing you to attach a hitch. Common brands include Hidden Hitch, Reese, & Blue Ox. Be aware when shopping, hitch receivers are often mislabeled as hitches. What it is called isnβt as important as doing what you need though. These come in 5 sizes, Class I, Class II, Class III, Class IV, Class V. Each class has different ranges of available ratings, and intended uses.
Trailer Hitch
There are many kinds of Hitch, and some do a lot more than others. An Equalizer hitch is recommended or required in a large number of trailer applications, and will greatly reduce the strain placed on the tow vehicle. The most basic hitches are only a linkage between the hitch receiver and the Hitch Ball, whereas fancier hitches like the Equalizer pictured below use some clever engineering to reduce weight transfer and increase stability.
Hitch Ball
The Shiny bit that attaches to the trailer! Some hitches will have a ball built-in and some will require attaching one. The Ball has a pretty simple, but very important job β securing the trailer and allowing it to twist and tilt without losing it. Make sure to keep the ball well lubricated, and make sure you have the right size for your trailer. There are 4 commonly available sizes: 1 7/8, 2, 2 5/16, and 3. The vast majority of RVs use a 2 5/16? hitch ball, but older trailers and tent trailers might use 2? or even 1 7/8. Making sure your ball is the same size as your coupler is extremely important when hitching your trailer. Too large a ball and you wonβt be able to lock the coupler, too small a ball and you wonβt get a firm connection potentially causing the coupler to fly off the hitch!

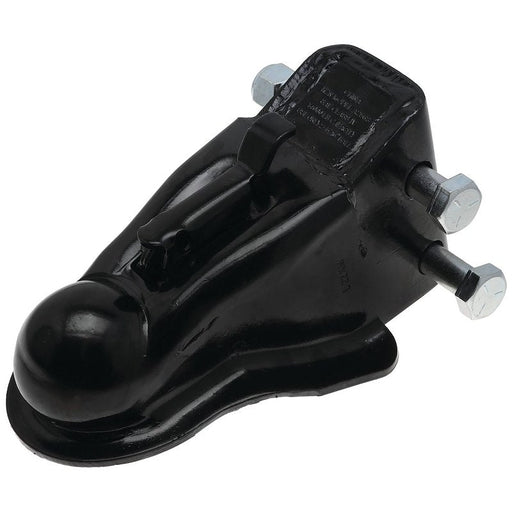

Hitch Coupler
This is actually part of your trailer but is a good thing to understand. The Coupler is typically welded onto the A-frame of the trailer and is what attaches to the ball to create the connection to the tow vehicle. The coupler is meant to slide freely on the ball and should be lubricated. The coupler contains a jaw-like mechanism that when locked in position will secure the ball inside of it, while still allowing some rotation. There are many ways that the mechanism can work, but there is usually a locking lever somewhere that controls the jaw and must be locked into position before moving the trailer.
Hitch Safety Chains & Cables
Should your trailer and tow vehicle experience an unplanned separation, youβd be in a lot of trouble if the trailer were left to its own devices. There is not much to say about chains other than β βUSE THEM!!!β β it could save someone's life, or at the very least a very expensive insurance claim. One thing often forgotten is that the chains should be crossed like in the photo below, the cross provides a place for the tongue to rest if it does become detached. Without it, the tongue would scrape on the ground, which would be much harder to control and can also result in βpole vaultingβ.
Breakaway Wire
Should all of the components above fail at once, your breakaway wire is your last line of defense. The wire should be firmly attached to your tow vehicleβs frame (not your chains), if the trailer decouples and the chains fail, the wire will be pulled out of its seat on the trailer which will cause the trailer brakes to lock up. Obviously, there is no controlling the trailer at this point, and the breakaway wire is only meant as a last-ditch effort to slow the trailer in an absolute emergency.
Popular Hitch Components Online RV Part Shop
RV Hitch Parts
RV Receiver Hitch
RV Trailer Hitch Parts
Tow Hitch Components
Tow Hitch Parts
Trailer Hitch Components
Trailer Hitch On Camper
Trailer Hitch Parts And Accessories
Trailer Hitch Parts For Sale
Trailer Hitch Pieces
Trailer Hitch Receiver Parts
Trailer Hitch Repair Parts
Trailer Lock Parts
Trailer Receiver Parts
Hitch A-Frame Couplers
Hitch Adjustable Mounts
Hitch Drop Mounts
Hitch Fixed Ball Mounts
Hitch Gooseneck Couplers
Hitch Components Parts And Service RV Part Shop Canada
RV Parts Shop Canada is the most comprehensive discount RV parts and surplus selection for your RVΒ Hitches & Towing Products online in Canada. We combine that with exceptional customer service, fast free shipping, and easy returns. No need to look for an "RV parts store near me", we can get you a larger selection than a local RV dealer and get it to you usually more quickly.
Our RV parts catalog online is a great way to browse all the great products we carry. You can review our product selection quickly and easily in a digital book format. It is an RV superstore catalog, the most comprehensive and informative in the industry. If you are looking for a travel trailer parts catalog, it is well worth checking out.
We are also an RV parts wholesale supplier, offering our RV and Camping Industry Partner program. This program is available to qualify mobile RV repair shops, RV dealers, campgrounds, and RV parks. We have RV supplies for resale or RV repair at additional discounts for those businesses. Our sale items include the best items of RV surplus as well. We ship our parts and accessories from a large network of sixteen RV warehouses nationwide.
Conclusion: If you go on long trips, you need a fuel-efficient RV Hitch and if you like getting the best prices with free shipping options, you need to shop from RV Part Shop Canada. Browse our selection today and see how we can keep your devices intact on your next trip. Using email addresses we provide an email notification service to update you with the latest reliable power and clean power products.
Alerts are an email containing brochures for all new products. When you search for the best Hitches for RV for sale in Canada near me a location list is generated, we are the best one-stop online shop for everything related to RV campers. Please contact us to buy the best-branded RV Hitch Component from Canada's largest RV Parts and accessories online store. Fast Free Shipping orders over $99. Shop now!
1/2" Receiver Lock GM A
StrattecStrattec 7019341
1/2" Receiver Lock GMC B
StrattecStrattec 70193421/2" RECEIVER LOCK GM B
1/2" RECVR PIN & CLIP
TrimaxTrimax SP125
1/2" Threaded Hitch Lock
SwagmanSwagman 640291/2" THREADED HITCH LOCK
1/2"Hitch Pin Clip Cd2
JR ProductsJR Products Hitch Pin Clip. Replacement clip for 1/2in pull pin. 2/card.
1/2"Pull Pin
JR ProductsJR Products Hitch Pin. Replacement towing hitch pin made of chromatic plated steel. Rust and corrosion resistant. For any Class I, II or III style ...
View full details1/2' Quick Link
JR ProductsJR Products 01345
1/4 Diam. Link
Prime ProductsGalvanized finish. Tightens with fingers. 1 per card.
1/4 Hitch Pin Clip
RTRT S-37
1/4" Chain Gr30 Galv. 1'
RTRT RT9026
1/4" Quick Links
JR ProductsJR Products Quick Links, 1/4in. For connecting safety chains. Constructed of zinc plated steel. Required in several states to attach chain to vehic...
View full details1/4"Hook For Chains
RTRT RT9033
10 000 Lb 7-1/2 Hitch Rec Extension
RoadmasterRoadmaster 071-1075
10 000 Lb. 2 5/16 X 1 1/4 X 2 3/8
Equalizer/FastwayMake sure you have a hitch ball tough enough to handle the load you?re towing. All have a 1-1/4 in. diameter threaded shank and are specially desig...
View full details10" Drop 180 Hitch w/ 2" Shank/Shaft, Adjustable Aluminum Trailer Hitch and Ball Mount
Weigh SafeWeigh Safe is the towing industry's leader for Towing Peace of Mind. The Weigh Safe 180 Hitch Chrome Edition is constructed of Solid Billet Aluminu...
View full details10" Drop 180 Hitch w/ 2.5" Shank/Shaft, Adjustable Aluminum Trailer Hitch and Ball Mount
Weigh SafeWeigh Safe is the towing industry's leader for Towing Peace of Mind. The Weigh Safe 180 Hitch Chrome Edition is constructed of Solid Billet Aluminu...
View full details10" Length w/2" Drop Black
ReeseFits 2" receiver opening. 6,000 lb. capacity. Black enamel powder coat finish to resist corrosion. Larger hitch ball is mounted in rise position. 2...
View full details10" Raw Steel Receiver Tubing (2-1/2" Receiver)
Curt ManufacturingFor the do-it-yourselfer, CURT offers an entire line of towing fabrication components to supply you with the quality building blocks you need. Thes...
View full details10.28"L X 10-1/4"Drop Or 9" Rise
Buyers Products5000 lbs. gross trailer weight, 350 lbs. tongue weight. Sold in bulk.
10INADJ BALLMOUNT 2.5INSHANK
Weigh SafeWeigh Safe WS10-2.5
10INADJ BALLMOUNT 2INSHANK
Weigh SafeWeigh Safe WS10-2
10INADJ BALLMOUNT3INSHANK
Weigh SafeWeigh Safe WS10-3
10INDROPT/OBALL 2INSHANK
Weigh SafeWeigh Safe LTB10-2
10INDROPT/OBALL 3INSHANK
Weigh SafeWeigh Safe LTB103
10INDROPT/OBALL2.5INSHANK
Weigh SafeWeigh Safe LTB10-2.5
10L X 2Drop Or 3/4 Rise
Buyers Products6000 lbs. gross trailer weight, 600 lbs. tongue weight. Sold in bulk.
10L X 4Drop Or 2-3/4 Rise
Buyers Products6000 lbs. gross trailer weight, 600 lbs. tongue weight. Retail package.
10L X 6Drop Or 4-3/4 Rise
Buyers Products6000 lbs. gross trailer weight, 600 lbs. tongue weight. Sold in bulk.
10L X 8Drop Or 6-3/4 Rise
Buyers Products6000 lbs. gross trailer weight, 600 lbs. tongue weight. Sold in bulk.
11" Reversible Ball Mount, 7" Drop 5-3/4" Lift
CamcoBall Mounts Ball mounts are 2" x 2" and are used to convert a receiver from a weight distributing to a weight carrying hitch. Ball mounts create a ...
View full details12 000 Lb. 2 5/16 X 1 1/4 X 2 3/8
Equalizer/FastwayMake sure you have a hitch ball tough enough to handle the load you?re towing. All have a 1-1/4 in. diameter threaded shank and are specially desig...
View full details12 Receiver Tube
Buyers ProductsHave a special application not covered by a traditional trailer hitch? Use these weld-on, unpainted tubes to fabricate your own receivers. Comes si...
View full details12" Combo Bar
CamcoCamco 4817212_ COMBO BAR
12" Raw Steel Receiver Tubing (2" Receiver)
Curt ManufacturingFor the do-it-yourselfer, CURT offers an entire line of towing fabrication components to supply you with the quality building blocks you need. Thes...
View full details12" RV Receiver Tube
Ultra-FabUltra-Fab Products 12-inch RV Receiver Tube. Weld-on receiver extension for your tow vehicle or trailer. Heavy duty powder-coated steel constructio...
View full details14 000 Lb. 2 5/16 X 1 1/4 X 2 3/8
Equalizer/FastwayMake sure you have a hitch ball tough enough to handle the load you?re towing. All have a 1-1/4 in. diameter threaded shank and are specially desig...
View full details14 Receiver Extension
ReeseReese Receiver Extensions are the ideal solution for slideout campers with extended overhangs. Designed to extend the receiver opening to 14 in. an...
View full details14" Receiver Tube Extender (2" Shank, 3,500 lbs.)
Curt ManufacturingNo matter what you are towing, CURT towing equipment is intended to get you from point A to point B and to have peace of mind while doing so. Our h...
View full details15-Ton Pintle W/Mounting Ki
Buyers ProductsBuyers Products PH15WMK
16K 2" Drop 6" Shank
B&WYou can trust a heavy duty ball mount made in the USA. Built like a tank, it can pull 16K, which is more than most trucks allow.
16K 4" Drop 6" Shank
B&WYou can trust a heavy duty ball mount made in the USA. Built like a tank, it can pull 16K, which is more than most trucks allow.
16K 6" Drop 6" Shank
B&WYou can trust a heavy duty ball mount made in the USA. Built like a tank, it can pull 16K, which is more than most trucks allow.
16K 8 Hole 3 Position 9" Shank
B&WGet to the job site without a hitch. Built to stand up to the rigors of a construction trailer, these pintle plates are rated at 16K with our high-...
View full details16K Pintle Plate
B&WGet to the job site without a hitch. Built to stand up to the rigors of a construction trailer, these pintle plates are rated at 16K with our high-...
View full details16K Pintle Plate
B&WGet to the job site without a hitch. Built to stand up to the rigors of a construction trailer, these pintle plates are rated at 16K with our high-...
View full details16K Pintle Plate
B&WGet to the job site without a hitch. Built to stand up to the rigors of a construction trailer, these pintle plates are rated at 16K with our high-...
View full details16K Pintle Plate
B&WGet to the job site without a hitch. Built to stand up to the rigors of a construction trailer, these pintle plates are rated at 16K with our high-...
View full details16K Pintle Plate
B&WGet to the job site without a hitch. Built to stand up to the rigors of a construction trailer, these pintle plates are rated at 16K with our high-...
View full details
